TPD1E10B06DYAR Texas Instruments - Yeehing Electronics

12-pF, ±5.5V, ±30-kV ESD protection diode in 0402 and SOD-523 package

Pricing (USD)

Quantity	Unit Price
1 — 99	0.087
100 — 249	0.056
250 — 999	0.042
1,000 +	0.02

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPD1E10B06DYAR Datasheet

More Information

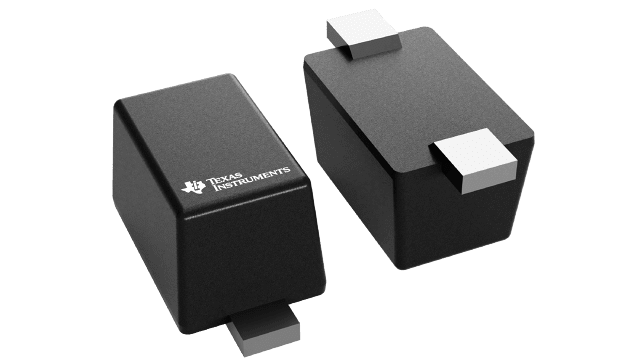

The TPD1E10B06 is a single-channel ESD TVS diode in a small 0402 package convenient for space contrained applications and an industry standard SOD-523 package. This TVS protection product offers ±30 kV contact ESD, ±30 kV IEC air-gap protection, and has an ESD clamp circuit with a back-to-back TVS diode for bipolar or bidirectional signal support. The 12 pF line capacitance of this ESD protection diode is suitable for a wide range of applications supporting data rates up to 400 Mbps.
