TPD1E10B06DYARQ1 Texas Instruments - Yeehing Electronics

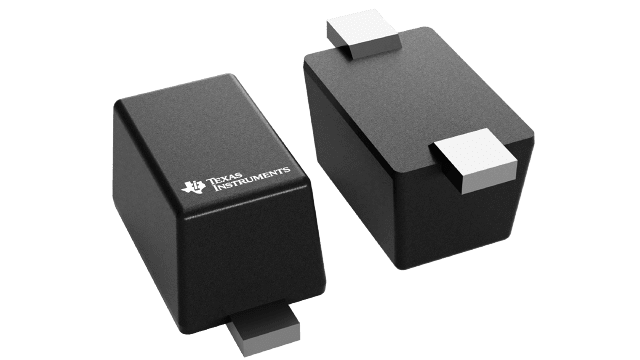

Automotive 12-pF, ±5.5V ±30-kV ESD protection diode in 0402 Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.155 |
| 100 — 249 | 0.105 |
| 250 — 999 | 0.081 |
| 1,000 + | 0.04 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPD1E10B06DYARQ1 Datasheet |
More Information
The TPD1E10B06-Q1 device is a bidirectional TVS ESD protection diode in a small 0402 package convenient for space contrained applications and an industry standard leaded SOD-523 package that enables automatic optical inspection (AOI). The TPD1E10B06-Q1 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4) since ESD voltages can easily reach 5000 V, which is more than enough to damage many integrated circuits, but during extreme conditions the voltages can be significantly higher. For example, in a low humidity environment voltages can exceed 20,000 V.
