TPD1E6B06DPLR Texas Instruments - Yeehing Electronics

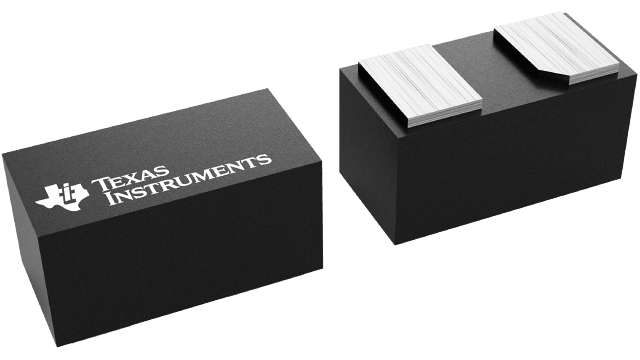

6-pF, ±5.5V, ±15-kV ESD protection diode in 0201 package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.103 |
| 100 — 249 | 0.07 |
| 250 — 999 | 0.054 |
| 1,000 + | 0.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD1E6B06 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 15 kV |
| Vesd - Voltage ESD Air Gap | 15 kV |
| Polarity | Bidirectional |
| Number of Channels | 1 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 6 V |
| Working Voltage | 5 V |
| Clamping Voltage | 10 V |
| Ipp - Peak Pulse Current | 5 A |
| Cd - Diode Capacitance | 6 pF |
| Package / Case | X2SON-2 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 15000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000007 oz |
For more information, please refer to datasheet
Documents
| TPD1E6B06DPLR Datasheet |
More Information
The TPD1E6B06 device is a single-channel TVS diode for electrostatic discharge (ESD) protection in a small 0201 package. The TPD1E6B06 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4), with ±15-kV contact discharge and ±15-kV air-gap ESD protection. The device has a back-to-back TVS diode configuration for bipolar or bidirectional signal support. The 6-pF line capacitance is suitable to provide transient voltage suppression circuit protection for a wide range of applications, supporting data rates up to
