TPD1E6B06DPLT Texas Instruments - Yeehing Electronics

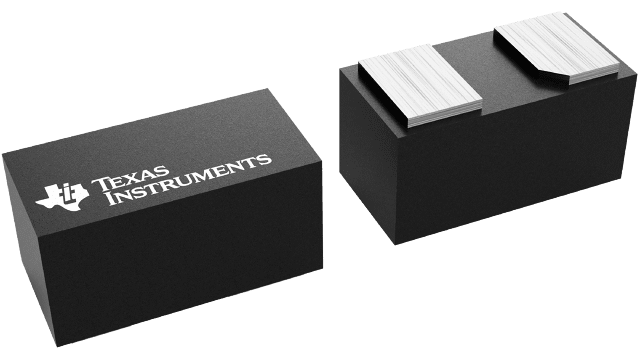

6-pF, ±5.5V, ±15-kV ESD protection diode in 0201 package

Pricing (USD)

Quantity	Unit Price
1 — 99	0.677
100 — 249	0.46
250 — 999	0.355
1,000 +	0.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	N
Series	TPD1E6B06
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	15 kV
Vesd - Voltage ESD Air Gap	15 kV
Polarity	Bidirectional
Number of Channels	1 Channel
Termination Style	SMD/SMT
Breakdown Voltage	6 V
Working Voltage	5 V
Clamping Voltage	10 V
Ipp - Peak Pulse Current	5 A
Cd - Diode Capacitance	6 pF
Package / Case	X2SON-2
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Brand	Texas Instruments
Factory Pack Quantity	250
Subcategory	TVS Diodes / ESD Suppression Diodes

For more information, please refer to datasheet

Documents

TPD1E6B06DPLT Datasheet

More Information

The TPD1E6B06 device is a single-channel TVS diode for electrostatic discharge (ESD) protection in a small 0201 package. The TPD1E6B06 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4), with ±15-kV contact discharge and ±15-kV air-gap ESD protection. The device has a back-to-back TVS diode configuration for bipolar or bidirectional signal support. The 6-pF line capacitance is suitable to provide transient voltage suppression circuit protection for a wide range of applications, supporting data rates up to
