TPD1S414YZR


YeeHing #: Y007-TPD1S414YZR
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPD1S414YZR Texas Instruments - Yeehing Electronics

USB charger O-VP switch with ESD

Pricing (USD)

Quantity Unit Price
1 — 99 0.815
100 — 249 0.627
250 — 999 0.462
1,000 + 0.23

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Minimum Operating Temperature -40
Maximum Operating Temperature 85
Factory Pack Quantity 3,000

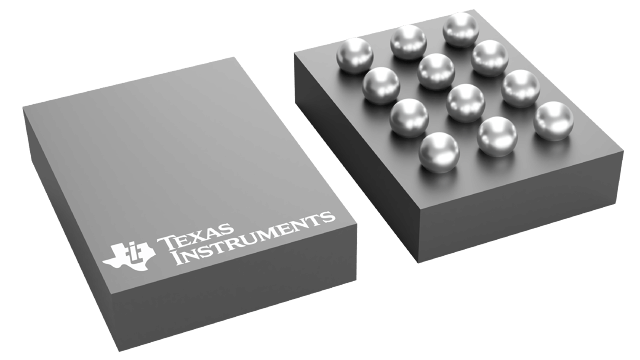

Package | Pins DSBGA (YZ) | 12

For more information, please refer to datasheet

Documents

TPD1S414YZR Datasheet

More Information

The TPD1S414 device is a single-chip solution for a USB connector’s VBUS line protection. The bidirectional nFET switch ensures safe current flow in both charging and host mode while protecting the internal system circuits from any overvoltage conditions at the VBUS_CON pin. On the VBUS_CON pin, this device can handle overvoltage protection up to 30 V. After the EN pin toggles low, the TPD1S414 waits 20 ms before turning ON the nFET through a soft-start delay. ACK pin indicates the FET is completely turned ON.
