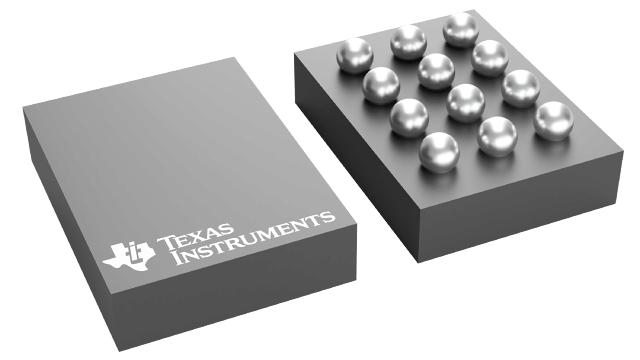

TPD1S514-2YZR Texas Instruments - Yeehing Electronics
USB charger over voltage Surge and ESD protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.613 |
| 100 — 249 | 0.471 |
| 250 — 999 | 0.347 |
| 1,000 + | 0.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPD1S514 |
| Brand | Texas Instruments |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| TPD1S514-2YZR Datasheet |
More Information
The TPD1S514 Family consists of single-chip protection solutions for 5-V, 9-V or 12-V USB VBUS lines, or other power buses. The bidirectional nFET switch ensures safe current flow in both charging and host mode while protecting the internal system circuits from any over voltage condition at the VBUS_CON pin. On the VBUS_CON pin, this device can handle over voltage protection up to 30-V DC. After the EN pin toggles low, any device in the TPD1S514 Family waits 20 ms before turning ON the nFET through a soft start delay.
