TPD1S514-3YZR Texas Instruments - Yeehing Electronics

USB charger over voltage Surge and ESD protection

Pricing (USD)

Quantity	Unit Price
1 — 99	0.613
100 — 249	0.471
250 — 999	0.347
1,000 +	0.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Voltage Range	4.7 V to 5.5 V
Output Current	3 mA
Input Voltage Range	3.5 V to 13.5 V
Input Current	270 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

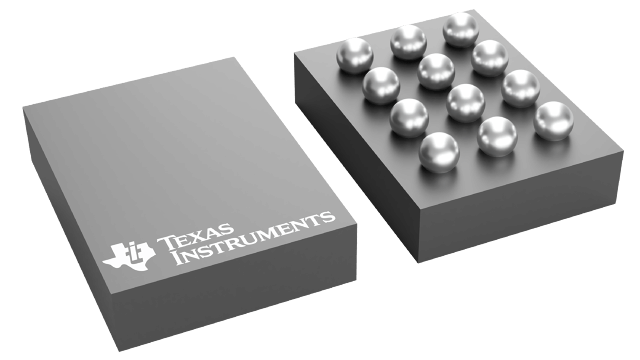

Package / Case	DSBGA-12
Type	USB Charger Over Voltage Surge and ESD Protection
Packaging	Reel
Height	0.625 mm
Length	2 mm
Operating Temperature Range	- 40 C to + 85 C
Product	USB Charger Switches
Series	TPD1S514
Width	1.3 mm
Brand	Texas Instruments
Operating Supply Current	270 uA
Operating Supply Voltage	12 V
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000102 oz

For more information, please refer to datasheet

Documents

TPD1S514-3YZR Datasheet

More Information

The TPD1S514 Family consists of single-chip protection solutions for 5-V, 9-V or 12-V USB VBUS lines, or other power buses. The bidirectional nFET switch ensures safe current flow in both charging and host mode while protecting the internal system circuits from any over voltage condition at the VBUS_CON pin. On the VBUS_CON pin, this device can handle over voltage protection up to 30-V DC. After the EN pin toggles low, any device in the TPD1S514 Family waits 20 ms before turning ON the nFET through a soft start delay.
