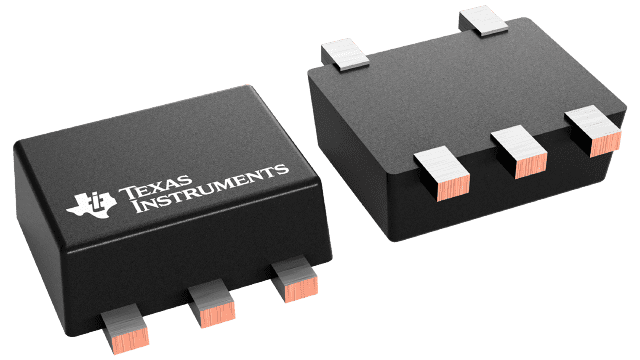

TPD2E001DRLR Texas Instruments - Yeehing Electronics
Dual 1.5-pF, 5.5-V, ±8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.344 |
100 — 249 | 0.234 |
250 — 999 | 0.181 |
1,000 + | 0.08 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | TVS Diodes / ESD Suppressors |
RoHS | Y |
Series | TPD2E001 |
Product Type | ESD Suppressors |
Vesd - Voltage ESD Contact | 8 kV |
Polarity | Unidirectional |
Number of Channels | 2 Channel |
Termination Style | SMD/SMT |
Breakdown Voltage | 11 V |
Working Voltage | 5.5 V |
Clamping Voltage | 25 V |
Ipp - Peak Pulse Current | 10 A |
Cd - Diode Capacitance | 1.5 pF |
Package / Case | SOT-5X3-5 |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Brand | Texas Instruments |
Factory Pack Quantity | 4000 |
Subcategory | TVS Diodes / ESD Suppression Diodes |
Unit Weight | 0.000099 oz |
For more information, please refer to datasheet
Documents
TPD2E001DRLR Datasheet |
More Information
The TPD2E001 is a two-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD2E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 Level 4 international standard.
