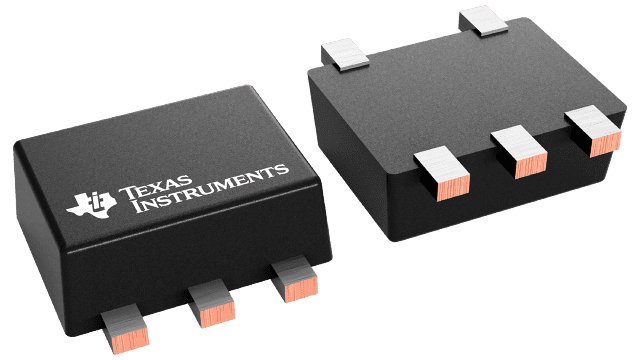

TPD2E001IDRLRQ1 Texas Instruments - Yeehing Electronics
Automotive Dual 1.5-pF, 5.5-V, ±8-kV ESD protection diode with VCC pin for USB 2.0
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.408 |
| 100 — 249 | 0.277 |
| 250 — 999 | 0.214 |
| 1,000 + | 0.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD2E001-Q1 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 8 kV |
| Polarity | Unidirectional |
| Number of Channels | 2 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 11 V |
| Working Voltage | 5.5 V |
| Clamping Voltage | 25 V |
| Ipp - Peak Pulse Current | 10 A |
| Cd - Diode Capacitance | 1.5 pF |
| Package / Case | SOT-5X3-5 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 4000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000113 oz |
For more information, please refer to datasheet
Documents
| TPD2E001IDRLRQ1 Datasheet |
More Information
The TPD2E001 is a low-capacitance ±15-kV ESD-protection diode array designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steer ESD current pulses to VCC or GND. The TPD2E001 protects against ESD pulses up to ±15-kV Human-Body Model (HBM), ±8-kV Contact Discharge, and ±15-kV Air-Gap Discharge, as specified in IEC 61000-4-2. This device has a 1.5-pF capacitance per channel, making it ideal for use in high-speed data IO interfaces.
