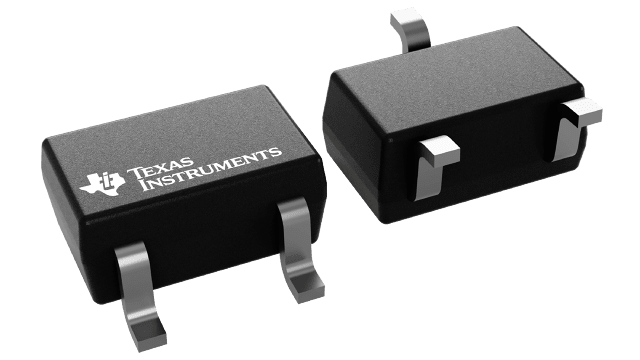

TPD2E007DCKR Texas Instruments - Yeehing Electronics

Dual 15-pF, ±13-V, ±8-kV ESD protection diode for AC Signal Data Interfaces

Pricing (USD)

Quantity	Unit Price
1 — 99	0.479
100 — 249	0.369
250 — 999	0.271
1,000 +	0.11

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	Y
Series	TPD2E007
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	8 kV
Vesd - Voltage ESD Air Gap	15 kV
Polarity	Bidirectional
Number of Channels	2 Channel
Termination Style	SMD/SMT
Breakdown Voltage	14 V
Working Voltage	13 V
Clamping Voltage	14 V
Cd - Diode Capacitance	10 pF
Package / Case	SC70-3
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Moisture Sensitive	Yes
Factory Pack Quantity	3000
Subcategory	TVS Diodes / ESD Suppression Diodes
Unit Weight	0.001623 oz

For more information, please refer to datasheet

Documents

TPD2E007DCKR Datasheet

More Information

This device is a transient voltage suppressor (TVS) based electrostatic discharge (ESD) protection device designed to offer system level ESD solutions for wide range of portable and industrial applications. The back-to-back diode array allows AC-coupled or negative-going data transmission (audio interface, LVDS, RS-485, RS-232, and so forth) without compromising signal integrity. This device exceeds the IEC 61000-4-2 (Level 4) ESD protection and is ideal for providing system level ESD protection for the internal ICs when placed near the connector.
