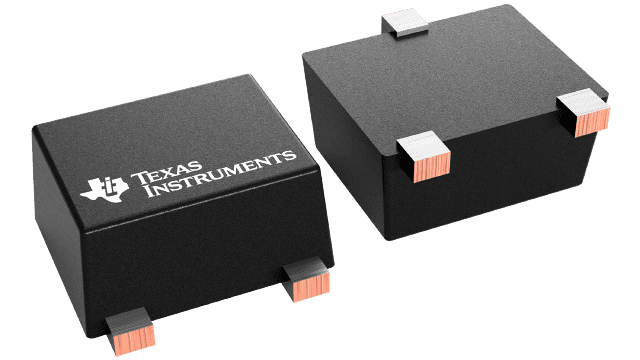

TPD2E009DRTR Texas Instruments - Yeehing Electronics
Dual 0.7-pF, 5.5-V, ±8-kV ESD protection diode with 5-A surge rating
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.258 |
100 — 249 | 0.176 |
250 — 999 | 0.135 |
1,000 + | 0.06 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TPD2E009DRTR Datasheet |
More Information
The TPD2E009 device provides two ESD protection diodes with flow-through pin mapping for ease of board layout. This device has been designed to protect sensitive components which are connected to ultra high-speed data and transmission lines. The TPD2E009 offers transient voltage suppression for Level 4 of IEC 61000-4-2 Contact ESD protection. TVS protection up to a 5-A (8/20 µs) peak pulse-current rating per the IEC 61000-4-5 (lightning) specification is also provided.
