Texas Instruments

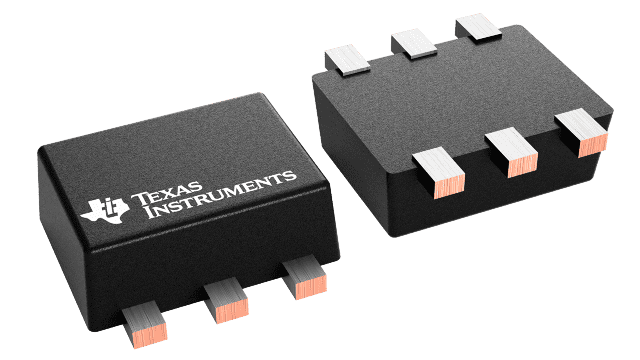

TPD2E1B06DRLR
TPD2E1B06DRLR
Regular price
$0.09 USD
Regular price
Sale price
$0.09 USD
Unit price
per
Couldn't load pickup availability
TPD2E1B06DRLR Texas Instruments - Yeehing Electronics
Dual 1-pF, ±5.5-V, ±10-kV ESD protection diode with ESD rating for USB 2.0
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.373 |
| 100 — 249 | 0.254 |
| 250 — 999 | 0.196 |
| 1,000 + | 0.09 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD2E1B06 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 10 kV |
| Vesd - Voltage ESD Air Gap | 15 kV |
| Polarity | Bidirectional |
| Number of Channels | 2 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 7 V |
| Working Voltage | 5.5 V |
| Clamping Voltage | 11 V |
| Ipp - Peak Pulse Current | 5 A |
| Cd - Diode Capacitance | 1.05 pF |
| Package / Case | SOT-5X3-6 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 4000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.044219 oz |
For more information, please refer to datasheet
Documents
| TPD2E1B06DRLR Datasheet |
More Information
The TPD2E1B06 device is a dual-channel, ultra-low capacitance ESD protection device. It offers ±10-KV IEC contact ESD protection. Its 1-pF line capacitance makes it suitable for a wide range of applications. Typical application interfaces are USB 2.0, LVDS, and I2C. The TPD2E1B06 device has two common layout methods, and both are highlighted in Layout.
