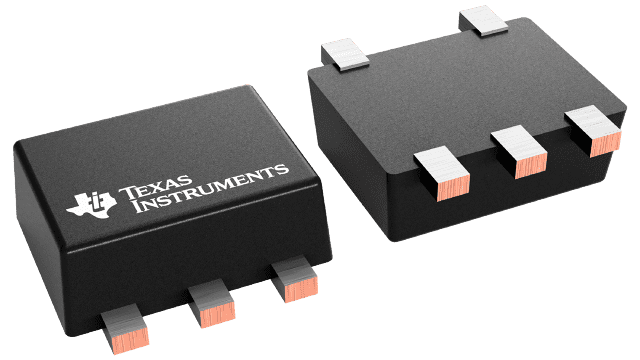

TPD2E2U06DRLR


YeeHing #: Y007-TPD2E2U06DRLR
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPD2E2U06DRLR Texas Instruments - Yeehing Electronics

Dual 1.5-pF, 5.5-V, ±25-kV ESD protection diode with 5.5-A 8/20-uS surge rating for USB 2.0

Pricing (USD)

Quantity Unit Price
1 — 99 0.376
100 — 249 0.255
250 — 999 0.197
1,000 + 0.09

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPD2E2U06DRLR Datasheet

More Information

The TPD2E2U06 is a dual-channel low capacitance TVS diode ESD protection device. The device offers ±25-kV contact and ±30-kV air-gap ESD protection in accordance with the IEC 61000-4-2 standard. The 1.5-pF line capacitance of the TPD2E2U06 makes the device suitable for a wide range of applications. Typical application interfaces are USB 2.0, LVDS, and I2C™.
