TPD2E2U06QDCKRQ1 Texas Instruments - Yeehing Electronics

Automotive Dual 1.5-pF, 5.5-V, ±25-kV ESD protection diode for USB & High Speed Interfaces

Pricing (USD)

Quantity	Unit Price
1 — 99	0.387
100 — 249	0.263
250 — 999	0.203
1,000 +	0.09

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	Y
Series	TPD2E2U06-Q1
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	25 kV
Polarity	Unidirectional
Number of Channels	2 Channel
Termination Style	SMD/SMT
Breakdown Voltage	6.5 V
Clamping Voltage	9.7 V

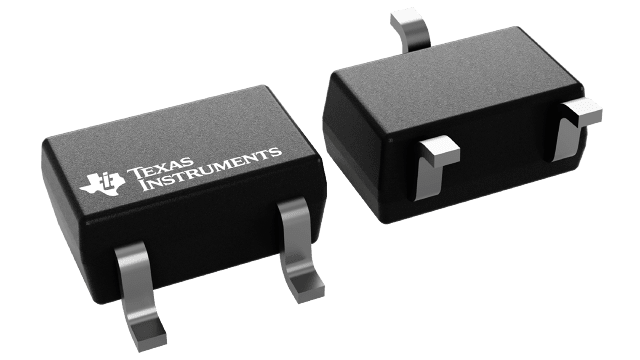

Package / Case	SC70-3
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Qualification	AEC-Q100
Packaging	Reel
Current Rating	10 nA
Brand	Texas Instruments
Moisture Sensitive	Yes
Factory Pack Quantity	3000
Subcategory	TVS Diodes / ESD Suppression Diodes

For more information, please refer to datasheet

Documents

TPD2E2U06QDCKRQ1 Datasheet

More Information

The TPD2E2U06-Q1 is a Transient Voltage Suppressor (TVS) Electrostatic Discharge (ESD) protection diode array with low capacitance. This dual-channel ESD protection diode is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The 1.5-pF line capacitance of the TPD2E2U06-Q1 makes it ideal for protecting interfaces such as USB 2.0, Ethernet, LVDS, antenna, and I2C.
