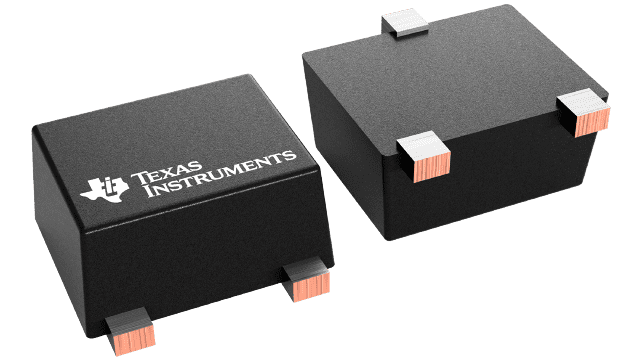

TPD2EUSB30ADRTR Texas Instruments - Yeehing Electronics

Dual l 0.7-pF, 3.6-V, ±8-kV ESD protection diode with 5-A surge rating for USB 3.0

Pricing (USD)

Quantity	Unit Price
1 — 99	0.258
100 — 249	0.176
250 — 999	0.135
1,000 +	0.06

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	Y
Series	TPD2EUSB30/A
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	8 kV
Vesd - Voltage ESD Air Gap	8 kV
Polarity	Unidirectional
Number of Channels	2 Channel
Termination Style	SMD/SMT
Breakdown Voltage	4.5 V
Working Voltage	5.5 V
Clamping Voltage	8 V
Cd - Diode Capacitance	0.08 pF
Package / Case	SOT-3
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Factory Pack Quantity	3000
Subcategory	TVS Diodes / ESD Suppression Diodes
Unit Weight	0.000402 oz

For more information, please refer to datasheet

Documents

TPD2EUSB30ADRTR Datasheet

More Information

The TPD2EUSB30, TPD2EUSB30A, and TPD4EUSB30 are 2 and 4 channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode arrays. The TPDxEUSB30/A devices are rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Contact). These devices also offer 5 A (8/20 µs) peak pulse current ratings per IEC 61000-4-5 (Surge) specification.
