Texas Instruments

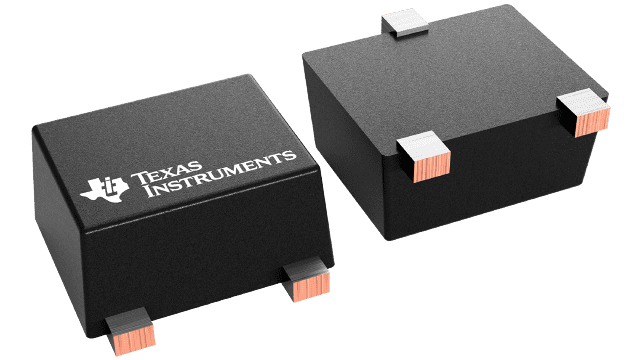

TPD2EUSB30DRTR
TPD2EUSB30DRTR
Regular price
$0.06 USD
Regular price
Sale price
$0.06 USD
Unit price
per
Couldn't load pickup availability
TPD2EUSB30DRTR Texas Instruments - Yeehing Electronics
Dual 0.7-pF, 5.5-V ±8-kV ESD protection diode with 5-A surge rating for USB 3.0
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.258 |
| 100 — 249 | 0.176 |
| 250 — 999 | 0.135 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD2EUSB30 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 8 kV |
| Vesd - Voltage ESD Air Gap | 9 kV |
| Polarity | Unidirectional |
| Number of Channels | 2 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 9 V |
| Working Voltage | 5.5 V |
| Clamping Voltage | 8 V |
| Cd - Diode Capacitance | 0.07 pF |
| Package / Case | SOT-3 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 3000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000388 oz |
For more information, please refer to datasheet
Documents
| TPD2EUSB30DRTR Datasheet |
More Information
The TPD2EUSB30, TPD2EUSB30A, and TPD4EUSB30 are 2 and 4 channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode arrays. The TPDxEUSB30/A devices are rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Contact). These devices also offer 5 A (8/20 µs) peak pulse current ratings per IEC 61000-4-5 (Surge) specification.
