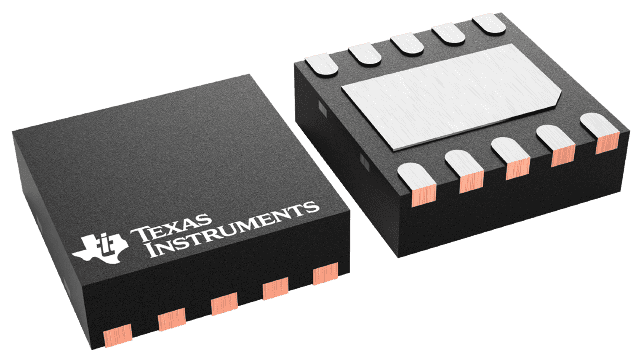

TPD2S701QDSKRQ1 Texas Instruments - Yeehing Electronics
Automotive USB 2-channel data line Short-to-Vbus and IEC ESD protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.195 |
| 100 — 249 | 0.92 |
| 250 — 999 | 0.677 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD2S701-Q1 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 8 kV |
| Vesd - Voltage ESD Air Gap | 15 kV |
| Polarity | Unidirectional |
| Number of Channels | 2 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | - |
| Clamping Voltage | - |
| Cd - Diode Capacitance | 10 uF |
| Package / Case | SON-10 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Factory Pack Quantity | 3000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000663 oz |
For more information, please refer to datasheet
Documents
| TPD2S701QDSKRQ1 Datasheet |
More Information
The TPD2S701-Q1 is a 2-Channel Data Line Short-to-VBUS and IEC61000-4-2 ESD protection device for automotive high-speed interfaces like USB 2.0. The TPD2S701-Q1 contains two data line nFET switches which ensure safe data communication by providing best in class bandwidth for minimal signal degradation while simultaneously protecting the internal system circuits from any overvoltage conditions at the VD+ and VD– pins.
