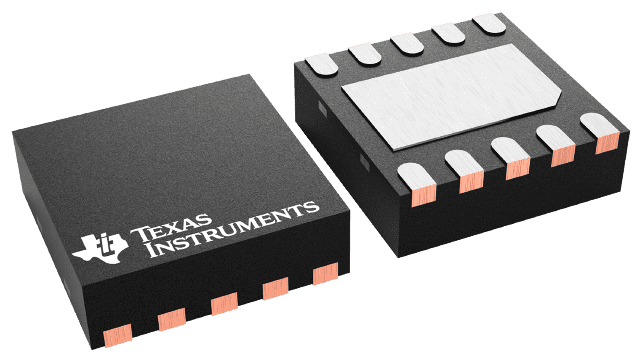

TPD2S703QDSKRQ1 Texas Instruments - Yeehing Electronics

Automotive USB 2-channel data line Short-to-Battery and IEC ESD protection

Pricing (USD)

Quantity	Unit Price
1 — 99	1.563
100 — 249	1.37
250 — 999	0.961
1,000 +	0.54

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	Y
Series	TPD2S703-Q1
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	8 kV
Vesd - Voltage ESD Air Gap	15 kV
Polarity	Unidirectional
Number of Channels	2 Channel
Termination Style	SMD/SMT
Breakdown Voltage	20 V
Clamping Voltage	6 V
Cd - Diode Capacitance	330 pF
Package / Case	SON-10
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	5 V
Factory Pack Quantity	3000
Subcategory	TVS Diodes / ESD Suppression Diodes
Unit Weight	0.000663 oz

For more information, please refer to datasheet

Documents

TPD2S703QDSKRQ1 Datasheet

More Information

The TPD2S703-Q1 is a 2-Channel Data Line Short-to-Battery, Short-to-VBUS, and IEC61000-4-2 ESD protection device for automotive high-speed interfaces like USB 2.0. The TPD2S703-Q1 contains two data line nFET switches which ensure safe data communication by providing best in class bandwidth for minimal signal degradation while simultaneously protecting the internal system circuits from any overvoltage conditions at the VD+ and VD– pins. On these pins, this device can handle overvoltage protection up to 18-V DC. This provides sufficient protection for shorting the data lines to the car battery as well as the USB VBUS rail. The overvoltage protection circuit provides the most reliable short-to-battery isolation in the industry, shutting off the data switches in 200 ns and protecting the upstream circuitry from harmful voltage and current spikes.
