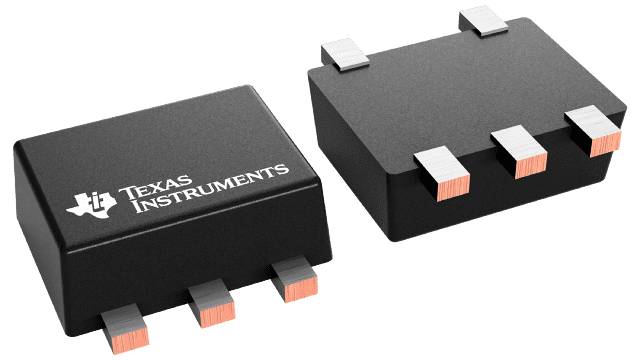

TPD3E001DRLR Texas Instruments - Yeehing Electronics

3 channel 1.5-pF, 5.5-V, ±8kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0

Pricing (USD)

Quantity	Unit Price
1 — 99	0.287
100 — 249	0.195
250 — 999	0.151
1,000 +	0.07

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPD3E001DRLR Datasheet

More Information

The TPD3E001 is a three-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD3E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device has a 1.5-pF IO capacitance per channel, making it ideal for use in high-speed data IO interfaces. The ultra low leakage current (<1 nA max) is suitable for precision analog measurements in applications like glucose meters and heart rate monitors.
