TPD3F303DPVR Texas Instruments - Yeehing Electronics

3 channel 5.5-V, ±15kV ESD protection & EMI Filter with 300-MHz -3-dB for Sim Card

Pricing (USD)

Quantity	Unit Price
1 — 99	0.553
100 — 249	0.426
250 — 999	0.313
1,000 +	0.16

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	85
Factory Pack Quantity	3,000

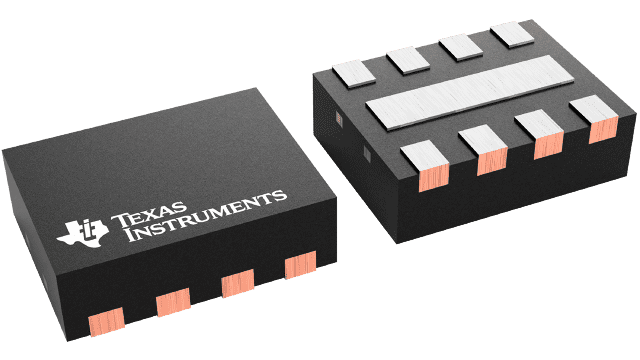

Package | Pins	USON (DPV) | 8

For more information, please refer to datasheet

Documents

TPD3F303DPVR Datasheet

More Information

The TPD3F303 device is a highly-integrated device that provides a three-channel Electromagnetic Interference (EMI) filter and a Transient Voltage Suppressor (TVS) based ESD protection diode array. The C-R-C based low-pass filter provides EMI protection for the data, clock, and reset lines of a SIM Card interface. Furthermore, the four-channel TVS Diode array provides IEC 61000-4-2 level 4 ESD protection for the previously mentioned signals (data, clock, reset) and the VCC power line. The TPD3F303 contains a 47-Ω termination resistor for the clock line and 100-Ω termination resistor for both the data and reset lines. The high level of integration offered by the TPD3F303 makes the device well-suited for applications like cell phones, tablets, hotspots, and PDAs.
