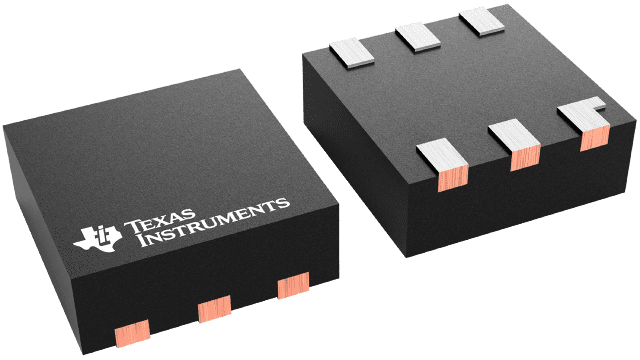

TPD4E001DPKR Texas Instruments - Yeehing Electronics

Quad 1.5-pF, 5.5-V, ±8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0

Pricing (USD)

Quantity	Unit Price
1 — 99	0.287
100 — 249	0.195
250 — 999	0.151
1,000 +	0.07

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	Y
Series	TPD4E001
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	8 kV
Vesd - Voltage ESD Air Gap	15 kV
Polarity	Unidirectional
Number of Channels	4 Channel
Termination Style	SMD/SMT
Breakdown Voltage	11 V
Working Voltage	5.5 V
Clamping Voltage	25 V
Ipp - Peak Pulse Current	5.5 A
Cd - Diode Capacitance	1.5 pF
Package / Case	USON-6
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Factory Pack Quantity	5000
Subcategory	TVS Diodes / ESD Suppression Diodes
Unit Weight	0.000138 oz

For more information, please refer to datasheet

Documents

TPD4E001DPKR Datasheet

More Information

The TPD4E001 is a four-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD4E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device has a 1.5-pF IO capacitance per channel, making it ideal for use in high-speed data IO interfaces. The ultra low leakage current (< 1 nA maximum) is suitable for precision analog measurements in applications like glucose meters and heart rate monitors.
