Texas Instruments
TPD4E001DPKT
TPD4E001DPKT
Regular price
$0.20 USD
Regular price
Sale price
$0.20 USD
Unit price
per
Couldn't load pickup availability
TPD4E001DPKT Texas Instruments - Yeehing Electronics
Quad 1.5-pF, 5.5-V, ±8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.852 |
| 100 — 249 | 0.656 |
| 250 — 999 | 0.483 |
| 1,000 + | 0.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD4E001 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 8 kV |
| Vesd - Voltage ESD Air Gap | 15 kV |
| Polarity | Unidirectional |
| Number of Channels | 4 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 11 V |
| Working Voltage | 5.5 V |
| Clamping Voltage | 25 V |
| Ipp - Peak Pulse Current | 5.5 A |
| Cd - Diode Capacitance | 1.5 pF |

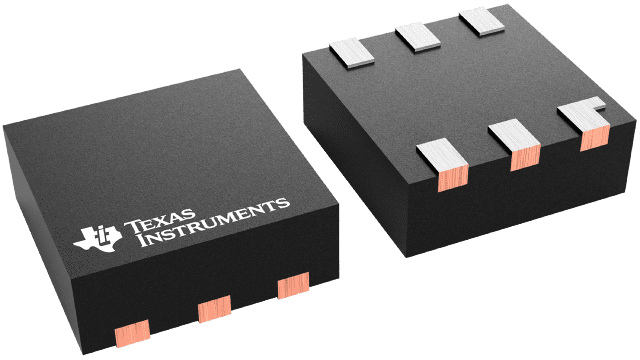

| Package / Case | USON-6 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 250 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000138 oz |
For more information, please refer to datasheet
Documents
| TPD4E001DPKT Datasheet |
More Information
The TPD4E001 is a four-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD4E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device has a 1.5-pF IO capacitance per channel, making it ideal for use in high-speed data IO interfaces. The ultra low leakage current (< 1 nA maximum) is suitable for precision analog measurements in applications like glucose meters and heart rate monitors.
