Texas Instruments

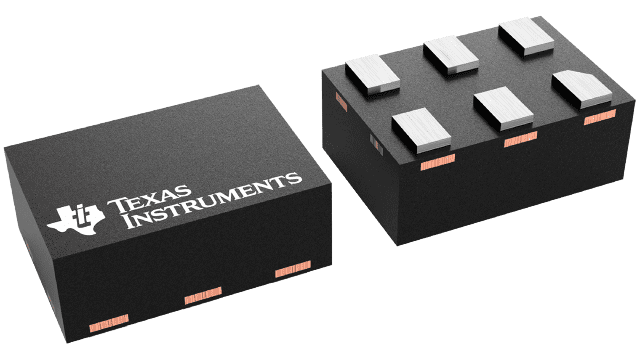

TPD4E004DRYR
TPD4E004DRYR
Regular price
$0.10 USD
Regular price
Sale price
$0.10 USD
Unit price
per
Couldn't load pickup availability
TPD4E004DRYR Texas Instruments - Yeehing Electronics
Quad 0.8-pF, 5.5-V, ±8-kV ESD protection diode with with VCC pin for High Speed Interfaces
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.373 |
| 100 — 249 | 0.254 |
| 250 — 999 | 0.196 |
| 1,000 + | 0.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD4E004 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 8 kV |
| Vesd - Voltage ESD Air Gap | 12 kV |
| Polarity | Unidirectional |
| Number of Channels | 4 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 6 V |
| Working Voltage | 5.5 V |
| Clamping Voltage | 14 V |
| Cd - Diode Capacitance | 1.6 pF |
| Package / Case | SON-6 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 5000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000113 oz |
For more information, please refer to datasheet
Documents
| TPD4E004DRYR Datasheet |
More Information
The TPD4E004 is a low-capacitance transient voltage suppression (TVS) device. TPD4E004 is designed to protect sensitive electronics attached to communication lines from electrostatic discharge (ESD). Each of the four channels consists of a pair of diodes that steer ESD current pulses to VCC or GND. The TPD4E004 protects against ESD pulses up to ±15-kV Human-Body Model (HBM) and, as specified in IEC 61000-4-2, ±8-kV contact discharge and ±12-kV air-gap Discharge. This device has 1.6-pF of capacitance per channel, making it ideal for use in high-speed data IO interfaces.
