Texas Instruments
TPD4E02B04DQAR
TPD4E02B04DQAR
Regular price
$0.09 USD
Regular price
Sale price
$0.09 USD
Unit price
per
Couldn't load pickup availability

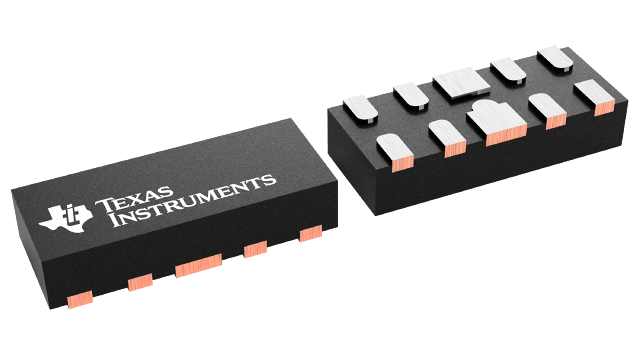

TPD4E02B04DQAR Texas Instruments - Yeehing Electronics
Quad 0.25-pF, ±3.6-V, ±12-kV ESD protection diode for USB 3.0, HDMI 2.0 & High Speed Signals
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.376 |
| 100 — 249 | 0.255 |
| 250 — 999 | 0.197 |
| 1,000 + | 0.09 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD4E02B04 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 12 kV |
| Vesd - Voltage ESD Air Gap | 15 kV |
| Polarity | Bidirectional |
| Number of Channels | 4 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 5.5 V |
| Clamping Voltage | 8.8 V |
| Ipp - Peak Pulse Current | 5 A |
| Cd - Diode Capacitance | 0.27 pF |
| Package / Case | USON-10 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Operating Supply Voltage | 3.6 V |
| Factory Pack Quantity | 3000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000988 oz |
For more information, please refer to datasheet
Documents
| TPD4E02B04DQAR Datasheet |
More Information
The TPD4E02B04 is a bidirectional TVS ESD protection diode array for USB Type-C and HDMI 2.0 circuit protection. The TPD4E02B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
