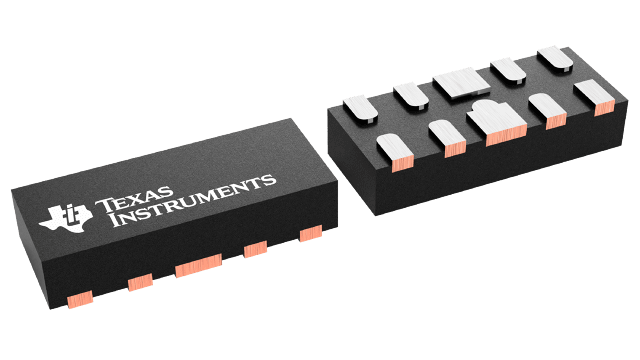

TPD4E02B04QDQARQ1 Texas Instruments - Yeehing Electronics

Automotive Quad 0.2-pF, ±3.6-V, ±12-kV ESD protection diode for USB 3.0 & High Speed Interfaces

Pricing (USD)

Quantity	Unit Price
1 — 99	0.383
100 — 249	0.295
250 — 999	0.217
1,000 +	0.11

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	Y
Series	TPD4E02B04-Q1
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	12 kV
Vesd - Voltage ESD Air Gap	15 kV
Polarity	Bidirectional
Number of Channels	4 Channel
Termination Style	SMD/SMT
Breakdown Voltage	5.5 V
Clamping Voltage	8.8 V
Ipp - Peak Pulse Current	5 A
Cd - Diode Capacitance	0.33 pF
Package / Case	USON-10
Pppm - Peak Pulse Power Dissipation	17 W
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3.6 V
Factory Pack Quantity	3000
Subcategory	TVS Diodes / ESD Suppression Diodes
Unit Weight	0.000134 oz

For more information, please refer to datasheet

Documents

TPD4E02B04QDQARQ1 Datasheet

More Information

The TPD4E02B04-Q1 is an automotive-qualified bidirectional TVS ESD protection diode array for USB Type-C and HDMI 2.0 circuit protection. The TPD4E02B04-Q1 is rated to dissipate ESD strikes up to 10 kV per ISO 10605 (330 pF, 330 Ω) ESD standard. The TPD4E02B04 is also rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
