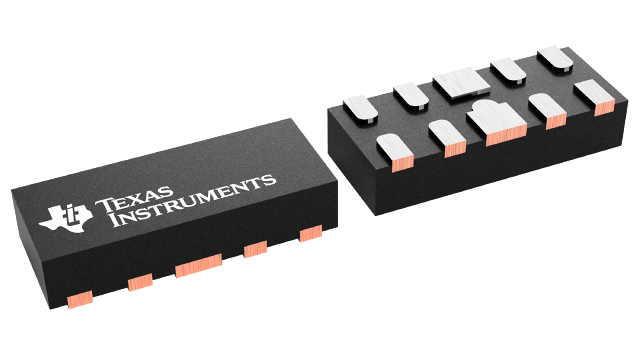

TPD4E05U06DQAR Texas Instruments - Yeehing Electronics
Quad 0.5-pF, 5.5-V, ±12-kV ESD protection diode for USB, HDMI & High Speed Interfaces
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.34 |
| 100 — 249 | 0.25 |
| 250 — 999 | 0.17 |
| 1,000 + | 0.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD4E05U06 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 12 kV |
| Vesd - Voltage ESD Air Gap | 15 kV |
| Polarity | Unidirectional |
| Number of Channels | 4 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 6 V |
| Working Voltage | 5.5 V |
| Clamping Voltage | 10 V |
| Ipp - Peak Pulse Current | 5 A |
| Cd - Diode Capacitance | 0.5 pF |
| Package / Case | USON-10 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 3000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000317 oz |
For more information, please refer to datasheet
Documents
| TPD4E05U06DQAR Datasheet |
More Information
The TPDxE05U06 is a family of unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance. Each device can dissipate ESD strikes above the maximum level specified by the IEC 61000-4-2 international standard. The TPDxE05U06s ultra-low loading capacitance makes it ideal for protecting any high-speed signal pins.
