TPD4E101DPWR Texas Instruments - Yeehing Electronics

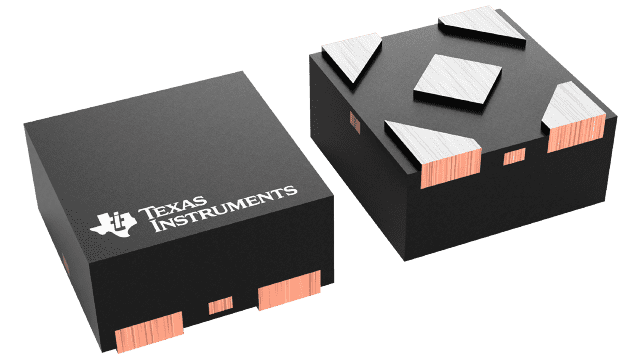

Quad 4.8-pF, ±5.5-V, ±15-kV ESD protection diode in 0.5mm pitch, 0.64mm2 SON package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.212 |
| 100 — 249 | 0.144 |
| 250 — 999 | 0.111 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD4E101 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 15 kV |
| Vesd - Voltage ESD Air Gap | 15 kV |
| Polarity | Bidirectional |
| Number of Channels | 4 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 6 V |
| Working Voltage | 5.5 V |
| Clamping Voltage | 10 V |
| Ipp - Peak Pulse Current | 3 A |
| Cd - Diode Capacitance | 4.8 pF |
| Package / Case | X2SON-4 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 3000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000028 oz |
For more information, please refer to datasheet
Documents
| TPD4E101DPWR Datasheet |
More Information
The TPD4E101 device is a four-channel electrostatic discharge (ESD) transient voltage suppression (TVS) diode array in an ultra small 0.8-mm × 0.8-mm package. This TVS protection device offers ±15-kV contact ESD, ±15-kV IEC air-gap protection, and has four back-to-back TVS diodes for bipolar or bidirectional signal support. The 4.8-pF typical line capacitance of this ESD protection diode array is suitable for a wide range of applications supporting data rates up to 700 Mbps. The DPW package is convenient for component placement in space-constrained applications and the 0.48-mm pitch helps save on PCB manufacturing costs.
