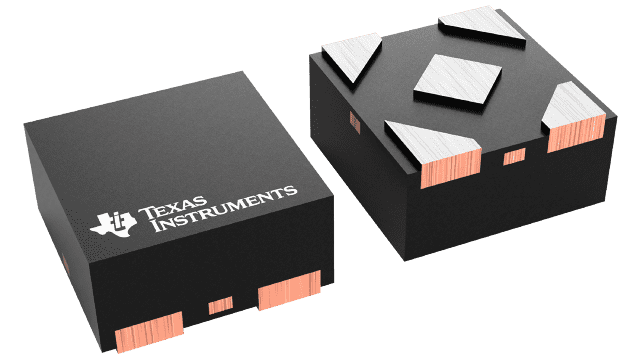

TPD4E110DPWR Texas Instruments - Yeehing Electronics
Quad 0.5-pF, 5.5-V, ±12-kV ESD protection diode in 0.64mm2 SON package for High Speed Interfaces
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.278 |
100 — 249 | 0.189 |
250 — 999 | 0.146 |
1,000 + | 0.17 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | TVS Diodes / ESD Suppressors |
RoHS | Y |
Series | TPD4E110 |
Product Type | ESD Suppressors |
Vesd - Voltage ESD Contact | 12 kV |
Vesd - Voltage ESD Air Gap | 15 kV |
Polarity | Unidirectional |
Number of Channels | 4 Channel |
Termination Style | SMD/SMT |
Breakdown Voltage | 6.5 V |
Working Voltage | 5.5 V |
Clamping Voltage | 10 V |
Ipp - Peak Pulse Current | 5 A |
Cd - Diode Capacitance | 0.45 pF |
Package / Case | X2SON-4 |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Packaging | Reel |
Brand | Texas Instruments |
Factory Pack Quantity | 3000 |
Subcategory | TVS Diodes / ESD Suppression Diodes |
Unit Weight | 0.000028 oz |
For more information, please refer to datasheet
Documents
TPD4E110DPWR Datasheet |
More Information
The TPD4E110 is a uni-directional Electrostatic Discharge (ESD) protection device with ultra-low capacitance. The device is constructed with a central ESD clamp and features two hiding diodes per channel to reduce the capacitive loading. Each channel is rated to dissipate ESD strikes above the maximum level specified in the IEC61000-4-2 level 4 international standard. The TPD4E110's ultra-low loading capacitance makes the device ideal for protecting high-speed signal pins.
