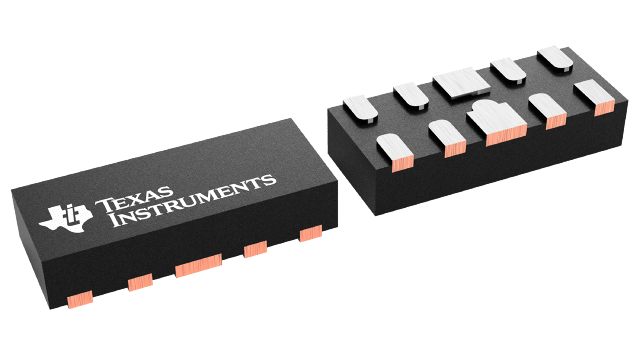

TPD4EUSB30DQAR Texas Instruments - Yeehing Electronics
Quad 0.8-pF, 5.5-V, ±8-kV ESD protection diode with 5-A 8/20-uS surge rating for USB 3.0
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.514 |
100 — 249 | 0.395 |
250 — 999 | 0.291 |
1,000 + | 0.17 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | TVS Diodes / ESD Suppressors |
RoHS | Y |
Series | TPD4EUSB30 |
Product Type | ESD Suppressors |
Vesd - Voltage ESD Contact | 8 kV |
Vesd - Voltage ESD Air Gap | 9 kV |
Polarity | Unidirectional |
Number of Channels | 4 Channel |
Termination Style | SMD/SMT |
Breakdown Voltage | 7 V |
Working Voltage | 5.5 V |
Clamping Voltage | 8 V |
Ipp - Peak Pulse Current | 1 A |
Cd - Diode Capacitance | 0.05 pF |
Package / Case | USON-10 |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Current Rating | 5 A |
Brand | Texas Instruments |
Factory Pack Quantity | 3000 |
Subcategory | TVS Diodes / ESD Suppression Diodes |
Vf - Forward Voltage | 0.8 V |
Unit Weight | 0.000317 oz |
For more information, please refer to datasheet
Documents
TPD4EUSB30DQAR Datasheet |
More Information
The TPD2EUSB30, TPD2EUSB30A, and TPD4EUSB30 are 2 and 4 channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode arrays. The TPDxEUSB30/A devices are rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Contact). These devices also offer 5 A (8/20 µs) peak pulse current ratings per IEC 61000-4-5 (Surge) specification.
