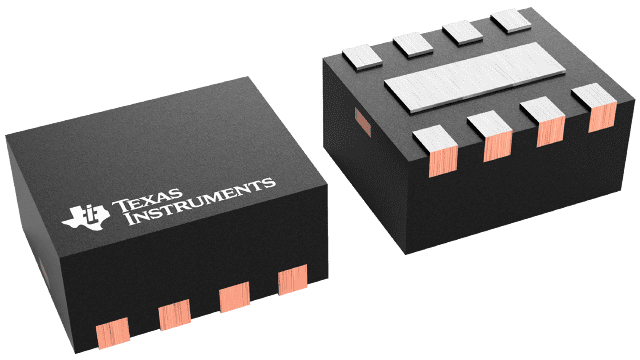

TPD4F003DQDR Texas Instruments - Yeehing Electronics

4 channel 5.5-V, ±12kV ESD protection & EMI Filter with 200-MHz -3-dB

Pricing (USD)

Quantity	Unit Price
1 — 99	0.568
100 — 249	0.386
250 — 999	0.298
1,000 +	0.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	EMI Filter Circuits
RoHS	Y
Product	EMI Network Filter Arrays
Type	EMI Filter with ESD Protection
Cutoff Frequency	200 MHz
Circuit Type	RC (Pi) Filter
Capacitance	8.5 pF
Inductance	-
Resistance	100 Ohms
Termination Style	SMD/SMT
Package / Case	WSON-8
Number of Channels	4, 6, 8 Channel
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPD4F003
Packaging	Reel
Frequency Range	1 GHz
Height	0.8 mm
Length	1.7 mm
Operating Temperature Range	- 40 C to + 85 C
Width	1.35 mm
Brand	Texas Instruments
Product Type	EMI Filter Circuits
Factory Pack Quantity	3000
Subcategory	Filters
Unit Weight	0.000180 oz

For more information, please refer to datasheet

Documents

TPD4F003DQDR Datasheet

More Information

The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
