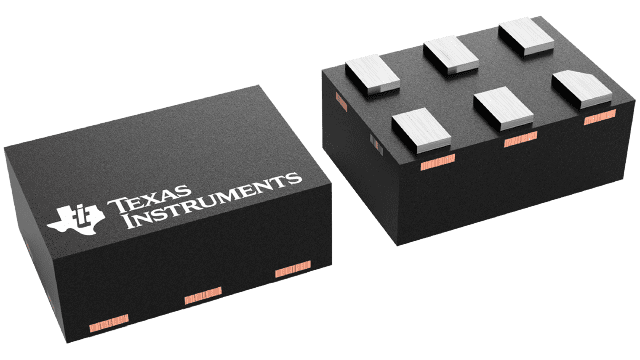

TPD4S009DRYR Texas Instruments - Yeehing Electronics
Quad 0.8-pF, 5.5-V, ±8-kV ESD protection diode with with VCC pin for High Speed Interfaces
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.456 |
| 100 — 249 | 0.31 |
| 250 — 999 | 0.239 |
| 1,000 + | 0.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 5,000 |
| Package | Pins | USON (DRY) | 6 |
For more information, please refer to datasheet
Documents
More Information
The TPD4S009 and TPD4S010 are four-channel TVS diode arrays for electrostatic discharge (ESD) protection. TPD4S009 and TPD4S010 are rated to dissipate contact ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4), with ±8-kV contact discharge ESD protection. The low capacitance (0.8-pF) of these devices, coupled with the excellent matching between differential signal pairs (0.05-pF line-line capacitance for the TPD4S009DRY) enables this device to provide transient voltage suppression circuit protection for high-speed differential data rates (3-dB bandwidth > 4 GHz).
