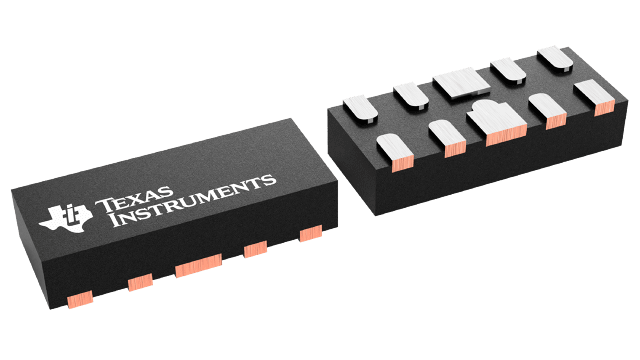

TPD4S010DQAR Texas Instruments - Yeehing Electronics

Quad 0.8-pF, 5.5-V, ±8-kV ESD protection diode with 5-A 8/20-uS surge rating for USB 3.0

Pricing (USD)

Quantity	Unit Price
1 — 99	0.565
100 — 249	0.384
250 — 999	0.296
1,000 +	0.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	Y
Series	TPD4S010
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	8 kV
Vesd - Voltage ESD Air Gap	9 kV
Polarity	Unidirectional
Number of Channels	4 Channel
Termination Style	SMD/SMT
Breakdown Voltage	9 V
Working Voltage	5.5 V
Clamping Voltage	20 V
Cd - Diode Capacitance	0.8 pF
Package / Case	USON-10
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Factory Pack Quantity	3000
Subcategory	TVS Diodes / ESD Suppression Diodes
Unit Weight	0.000317 oz

For more information, please refer to datasheet

Documents

TPD4S010DQAR Datasheet

More Information

The TPD4S009 and TPD4S010 are four-channel TVS diode arrays for electrostatic discharge (ESD) protection. TPD4S009 and TPD4S010 are rated to dissipate contact ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4), with ±8-kV contact discharge ESD protection. The low capacitance (0.8-pF) of these devices, coupled with the excellent matching between differential signal pairs (0.05-pF line-line capacitance for the TPD4S009DRY) enables this device to provide transient voltage suppression circuit protection for high-speed differential data rates (3-dB bandwidth > 4 GHz).
