TPD4S014DSQR


YeeHing #: Y007-TPD4S014DSQR
Inventory: 3800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

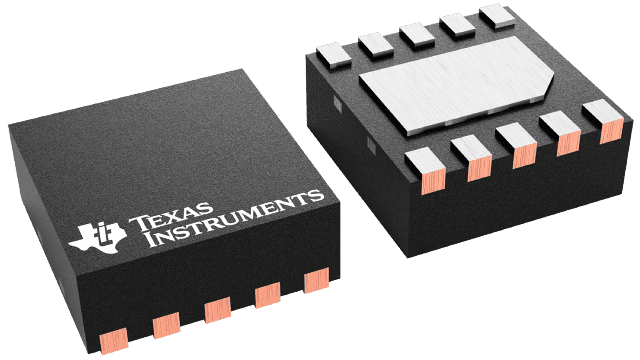

TPD4S014DSQR Texas Instruments - Yeehing Electronics

Complete USB Port protection device

Pricing (USD)

Quantity Unit Price
1 — 99 1.192
100 — 249 0.984
250 — 999 0.707
1,000 + 0.37

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category TVS Diodes / ESD Suppressors
RoHS Y
Series TPD4S014
Product Type ESD Suppressors
Vesd - Voltage ESD Contact 15 kV
Vesd - Voltage ESD Air Gap 15 kV
Polarity Unidirectional
Number of Channels 4 Channel
Termination Style SMD/SMT
Breakdown Voltage 6 V
Working Voltage 5 V
Clamping Voltage 15 V
Cd - Diode Capacitance 1.6 pF
Package / Case WSON-10
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Brand Texas Instruments
Moisture Sensitive Yes
Factory Pack Quantity 3000
Subcategory TVS Diodes / ESD Suppression Diodes
Unit Weight 0.000332 oz

For more information, please refer to datasheet

Documents

TPD4S014DSQR Datasheet

More Information

The TPD4S014 is a single-chip solution for USB charger port protection. This device offers low capacitance transient voltage suppressor (TVS) electrostatic discharge (ESD) clamps for the D+, D-, and standard capacitance for the ID pin. On the VBUS pin, this device provides overvoltage protection (OVP) up to 28 V DC. The overvoltage lockout feature ensures that if there is a fault condition at the VBUS line, the TPD4S014 is able to isolate the VBUS line to protect the internal circuitry from damage. There is a 17-ms turn-on delay after VBUS rises above the undervoltage lockout (UVLO) threshold in order to let the voltage stabilize before turning the nFET on. This function acts as a de-glitch and prevents unnecessary switching if there is any ringing on the line during connection.
