Texas Instruments

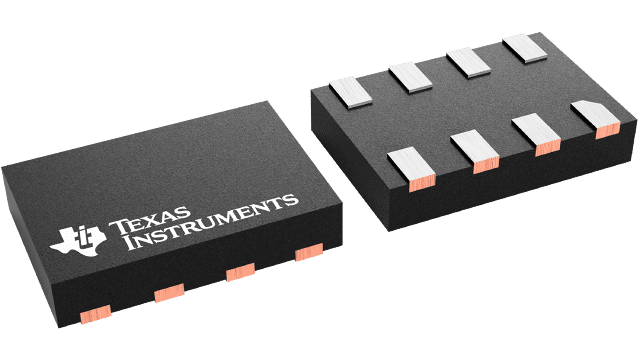

TPD4S1394DQLR
TPD4S1394DQLR
Regular price
$0.18 USD
Regular price
Sale price
$0.18 USD
Unit price
per
Couldn't load pickup availability
TPD4S1394DQLR Texas Instruments - Yeehing Electronics
Firewire ESD clamp with li-Ve-insertion detection circuit
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.625 |
| 100 — 249 | 0.481 |
| 250 — 999 | 0.354 |
| 1,000 + | 0.18 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD4S1394 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 6 kV |
| Vesd - Voltage ESD Air Gap | - |
| Polarity | Unidirectional |
| Number of Channels | 4 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 4.2 V |
| Working Voltage | 3.3 V |
| Clamping Voltage | 8 V |
| Cd - Diode Capacitance | 1.5 pF |
| Package / Case | X2SON-8 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Operating Supply Voltage | 3.4 V |
| Factory Pack Quantity | 3000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000092 oz |
For more information, please refer to datasheet
Documents
| TPD4S1394DQLR Datasheet |
More Information
The TPD4S1394 provides robust system level ESD solution for the IEEE 1394 port, along with a live insertion detection mechanism for high-speed lines interfacing a low-voltage, ESD sensitive core chipset. This device protects and monitors up to two differential input pairs. The optimized line capacitance protects the data lines with data rates in excess of 1.6 GHz without degrading signal integrity.
