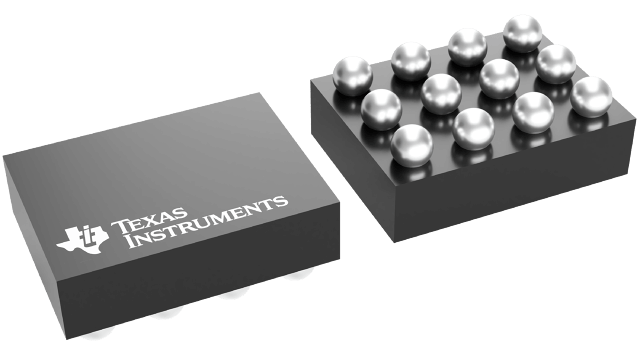

TPD4S214YFFR Texas Instruments - Yeehing Electronics
USB OTG companion device with Vbus over voltage, overcurrent protection, and four-channel ESD clamp
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.642 |
100 — 249 | 0.494 |
250 — 999 | 0.364 |
1,000 + | 0.21 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | TVS Diodes / ESD Suppressors |
RoHS | Y |
Series | TPD4S214 |
Product Type | ESD Suppressors |
Vesd - Voltage ESD Contact | 15 kV |
Vesd - Voltage ESD Air Gap | 15 kV |
Polarity | Unidirectional |
Number of Channels | 4 Channel |
Termination Style | SMD/SMT |
Breakdown Voltage | 6 V |
Working Voltage | 5 V |
Clamping Voltage | 9 V |
Cd - Diode Capacitance | 1.9 pF |
Package / Case | DSBGA-12 |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Current Rating | 1 uA |
Brand | Texas Instruments |
Operating Supply Voltage | 30 V |
Factory Pack Quantity | 3000 |
Subcategory | TVS Diodes / ESD Suppression Diodes |
Vf - Forward Voltage | 0.95 V |
Unit Weight | 0.000095 oz |
For more information, please refer to datasheet
Documents
TPD4S214YFFR Datasheet |
More Information
The TPD4S214 is a single-chip protection solution for USB On-the-Go (OTG) and other current limited USB applications. This device includes an integrated low RDS(ON) N-channel current limited switch for the OTG current supply to peripheral devices. TPD4S214 offers low capacitance transient voltage suppression (TVS) electrostatic discharge (ESD) clamping diodes for the D+, D–, and ID pins for both USB2.0 and USB3.0 applications. The VBUS pin can handle continuous voltage ranging from –7 V to 30 V. The over voltage lock-out (OVLO) at the VBUS pin ensures that if there is a fault condition at the VBUS line, TPD4S214 is able to isolate it and protect the internal circuitry from damage. Similarly, the under voltage lock out (UVLO) at the VOTG_IN pin ensures that there is no power drain from the internal OTG supply to external VBUS if VOTG_IN droops below a safe operating level. When EN is high, the OTG switch is activated and the FLT pin indicates whether there is a fault condition. The soft start feature waits 16 ms to turn on the OTG switch after all operating conditions are met.
