TPD5E003DPFR Texas Instruments - Yeehing Electronics

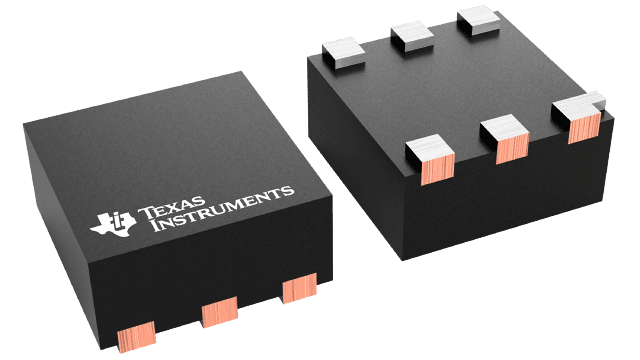

5 channel 7-pF, 5.5-V, 15-kV ESD protection device in 1mm2 X2SON package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.405 |
| 100 — 249 | 0.275 |
| 250 — 999 | 0.212 |
| 1,000 + | 0.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD5E003 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 8 kV |
| Vesd - Voltage ESD Air Gap | 15 kV |
| Polarity | Unidirectional |
| Number of Channels | 5 Channel, 4 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 6 V |
| Working Voltage | 5 V |
| Clamping Voltage | 13 V |
| Ipp - Peak Pulse Current | 10 A |
| Cd - Diode Capacitance | 10 pF |
| Package / Case | X2SON-6 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Operating Supply Voltage | 5.5 V |
| Factory Pack Quantity | 5000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000032 oz |
For more information, please refer to datasheet
Documents
| TPD5E003DPFR Datasheet |
More Information
The TPD5E003 is a five-channel electrostatic discharge (ESD) transient voltage suppression (TVS) device. This device offers ±15-kV IEC contact and ±15-kV air-gap (level 4) ESD protection, and features five identical ESD clamping diodes that can be used to protect either five unidirectional (0 V to 5 V) I/O lines or four bidirectional (–5 V to 5 V) I/O lines. The compact DPF package is an industry standard and is convenient for component placement in
