Texas Instruments
TPD5S116YFFR
TPD5S116YFFR
Regular price
$0.29 USD
Regular price
Sale price
$0.29 USD
Unit price
per
Couldn't load pickup availability
TPD5S116YFFR Texas Instruments - Yeehing Electronics
HDMI companion chip with 5-V load switch, level shifter, and ESD clamp
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.04 |
| 100 — 249 | 0.8 |
| 250 — 999 | 0.589 |
| 1,000 + | 0.29 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Specialized |
| RoHS | Y |
| Type | HDMI Interface |
| Operating Supply Voltage | 5.5 V |
| Operating Supply Current | 125 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

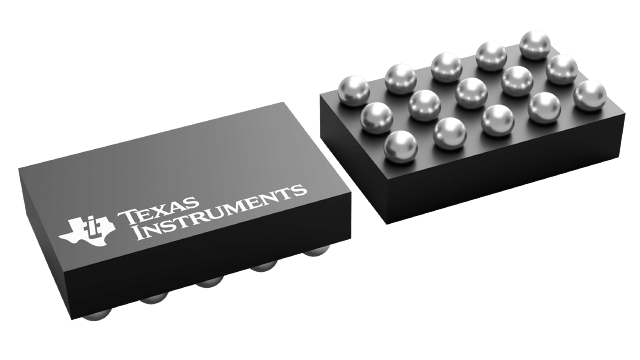

| Package / Case | DSBGA-15 |
| Packaging | Reel |
| Product | HDMI Controller |
| Series | TPD5S116 |
| Brand | Texas Instruments |
| Interface Type | HDMI |
| Development Kit | TPD5S116EVM |
| Product Type | Interface - Specialized |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.1 V |
| Unit Weight | 0.000116 oz |
For more information, please refer to datasheet
Documents
| TPD5S116YFFR Datasheet |
More Information
TPD5S116 is a single-chip HDMI interface Electrostatic Discharge (ESD) protection device with auto-direction sensing I2C voltage level shifting buffers and a 5-V HDMI compliant current limited load switch. Other key features are hot-plug-detect and Transient Voltage Suppression (TVS) with ESD protection diodes. Each connector-side pin has a TVS diode for circuit protection from ESD. An internal 3.3-V node powers the CEC pin, eliminating the need for a 3.3-V supply on board.
