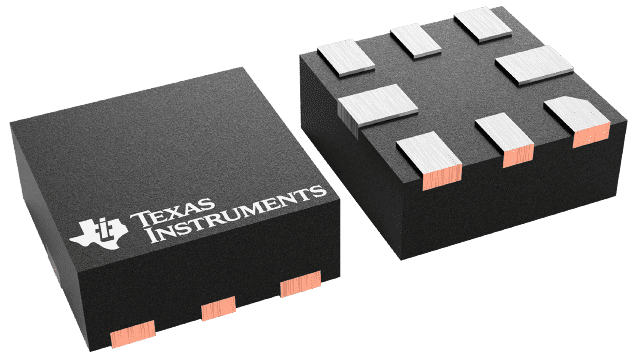

TPD6E004RSER Texas Instruments - Yeehing Electronics

6 channel 1.6-pF, 5.5-V, 8-kV ESD protection diode for High Speed Interfaces

Pricing (USD)

Quantity	Unit Price
1 — 99	0.459
100 — 249	0.312
250 — 999	0.241
1,000 +	0.11

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	Y
Series	TPD6E004
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	8 kV
Vesd - Voltage ESD Air Gap	12 kV
Polarity	Unidirectional
Number of Channels	6 Channel
Termination Style	SMD/SMT
Breakdown Voltage	6 V
Working Voltage	5.5 V
Clamping Voltage	20 V
Cd - Diode Capacitance	1.6 pF
Package / Case	UQFN-8
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Operating Supply Voltage	0.9 V to 5.5 V
Factory Pack Quantity	3000
Subcategory	TVS Diodes / ESD Suppression Diodes
Unit Weight	0.000187 oz

For more information, please refer to datasheet

Documents

TPD6E004RSER Datasheet

More Information

The TPD6E004 device is a low-capacitance, ±15-kV ESD-protection diode array designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steers ESD current pulses to VCC or GND. The TPD6E004 protects against ESD pulses up to ±15-kV human-body model (HBM), ±8-kV contact ESD, and ±12-kV air-gap ESD as specified in IEC 61000-4-2. This device has a typical 1.6-pF capacitance per channel, making it ideal for use in high-speed data I/O interfaces.
