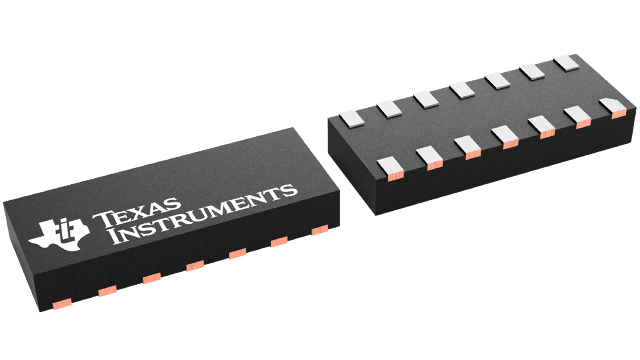

TPD6E05U06RVZR Texas Instruments - Yeehing Electronics

6 channel 0.5-pF, 5.5-V, ±12-kV ESD protection diode for USB, HDMI & High Speed Interfaces

Pricing (USD)

Quantity	Unit Price
1 — 99	0.494
100 — 249	0.38
250 — 999	0.28
1,000 +	0.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	TVS Diodes / ESD Suppressors
RoHS	Y
Series	TPD6E05U06
Product Type	ESD Suppressors
Vesd - Voltage ESD Contact	12 kV
Vesd - Voltage ESD Air Gap	15 kV
Polarity	Unidirectional
Number of Channels	6 Channel
Termination Style	SMD/SMT
Breakdown Voltage	6 V
Working Voltage	5.5 V
Clamping Voltage	10 V
Ipp - Peak Pulse Current	5 A
Cd - Diode Capacitance	0.5 pF
Package / Case	USON-14
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Brand	Texas Instruments
Factory Pack Quantity	3000
Subcategory	TVS Diodes / ESD Suppression Diodes
Unit Weight	0.000272 oz

For more information, please refer to datasheet

Documents

TPD6E05U06RVZR Datasheet

More Information

The TPDxE05U06 is a family of unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance. Each device can dissipate ESD strikes above the maximum level specified by the IEC 61000-4-2 international standard. The TPDxE05U06s ultra-low loading capacitance makes it ideal for protecting any high-speed signal pins.
