Texas Instruments
TPD6F002DSVR
TPD6F002DSVR
Regular price
$0.16 USD
Regular price
Sale price
$0.16 USD
Unit price
per
Couldn't load pickup availability

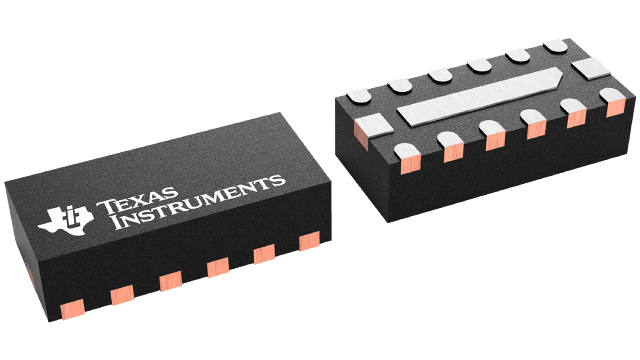

TPD6F002DSVR Texas Instruments - Yeehing Electronics
4 channel 5.5-V, ±20kV ESD protection & EMI Filter with 100-MHz -3-dB for Sim Card
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.563 |
| 100 — 249 | 0.433 |
| 250 — 999 | 0.319 |
| 1,000 + | 0.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | EMI Filter Circuits |
| RoHS | Y |
| Cutoff Frequency | 100 MHz |
| Capacitance | 17 pF |
| Termination Style | SMD/SMT |
| Package / Case | WSON-12 |
| Number of Channels | 6 Channel |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPD6F002 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Product Type | EMI Filter Circuits |
| Factory Pack Quantity | 3000 |
| Subcategory | Filters |
| Unit Weight | 0.000303 oz |
For more information, please refer to datasheet
Documents
| TPD6F002DSVR Datasheet |
More Information
The TPD6F002 device is a highly-integrated device that provides a six-channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array. The low-pass filter array suppresses EMI/RFI emissions for data ports subject to electromagnetic interference. The TVS diode array is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The high level of integration, combined with its small easy-to-route DSV package, allows this device to provide great circuit protection for LCD displays, memory interfaces, GPIO lines, and FPD-Link.
