TPD6F002QDSVRQ1 Texas Instruments - Yeehing Electronics

Automotive 6-channel 5.5-V ESD protection & EMI Filter for LCD Display Application

Pricing (USD)

Quantity	Unit Price
1 — 99	0.536
100 — 249	0.412
250 — 999	0.304
1,000 +	0.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	125
Factory Pack Quantity	3,000

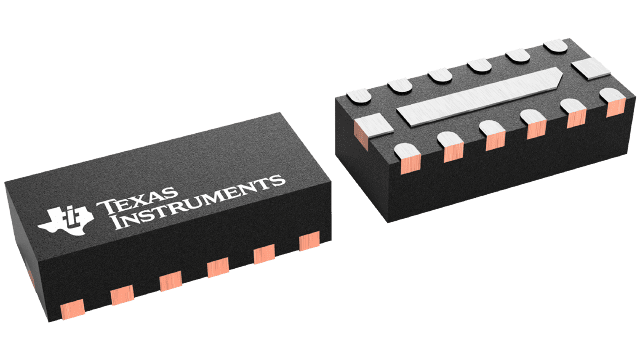

Package | Pins	WSON (DSV) | 12

For more information, please refer to datasheet

Documents

TPD6F002QDSVRQ1 Datasheet

More Information

The TPD6F002-Q1 is a highly integrated device that provides a six channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array. The low-pass filter array suppresses EMI/RFI emissions for data ports subject to electromagnetic interference. The TVS diode array is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The high level of integration, combined with its small easy-to-route DSV package, allows this device to provide great circuit protection for LCD displays, memory interfaces, GPIO lines, and FPD-Link.
