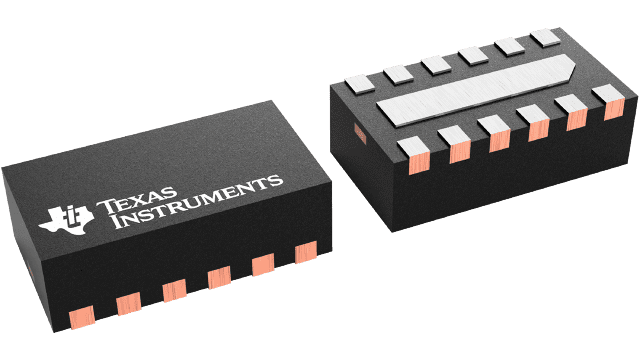

TPD6F003DQDR Texas Instruments - Yeehing Electronics
4 channel 5.5-V, ±12kV ESD protection & EMI Filter with 200-MHz -3-dB
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.347 |
100 — 249 | 0.236 |
250 — 999 | 0.182 |
1,000 + | 0.08 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | EMI Filter Circuits |
RoHS | Y |
Product | EMI Network Filter Arrays |
Type | EMI Filter with ESD Protection |
Cutoff Frequency | 200 MHz |
Circuit Type | RC (Pi) Filter |
Capacitance | 8.5 pF |
Inductance | - |
Resistance | 100 Ohms |
Termination Style | SMD/SMT |
Package / Case | WSON-12 |
Number of Channels | 4, 6, 8 Channel |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Series | TPD6F003 |
Packaging | Reel |
Frequency Range | 1 GHz |
Height | 0.8 mm |
Length | 2.5 mm |
Operating Temperature Range | - 40 C to + 85 C |
Width | 1.35 mm |
Brand | Texas Instruments |
Product Type | EMI Filter Circuits |
Factory Pack Quantity | 3000 |
Subcategory | Filters |
Unit Weight | 0.000261 oz |
For more information, please refer to datasheet
Documents
TPD6F003DQDR Datasheet |
More Information
The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
