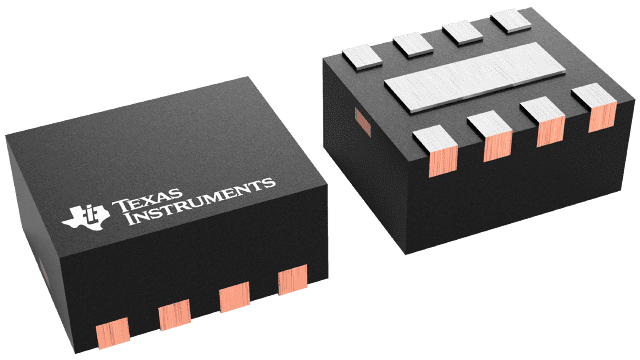

TPD8E003DQDR Texas Instruments - Yeehing Electronics
8 channel 9-pF, 5.5-V, ±12-kV ESD protection diode
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.342 |
100 — 249 | 0.232 |
250 — 999 | 0.179 |
1,000 + | 0.08 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | TVS Diodes / ESD Suppressors |
RoHS | Y |
Series | TPD8E003 |
Product Type | ESD Suppressors |
Vesd - Voltage ESD Contact | 12 kV |
Vesd - Voltage ESD Air Gap | 15 kV |
Polarity | Unidirectional |
Number of Channels | 8 Channel |
Termination Style | SMD/SMT |
Breakdown Voltage | 6 V |
Working Voltage | 2.5 V |
Clamping Voltage | 10 V |
Ipp - Peak Pulse Current | 2 A |
Cd - Diode Capacitance | 9 pF |
Package / Case | WSON-8 |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Brand | Texas Instruments |
Factory Pack Quantity | 3000 |
Subcategory | TVS Diodes / ESD Suppression Diodes |
Unit Weight | 0.000180 oz |
For more information, please refer to datasheet
Documents
TPD8E003DQDR Datasheet |
More Information
The TPD8E003 device is a unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD8E003 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device provides 8 channels of ESD protection in a space-saving WSON package. Typical applications for the TPD8E003 include Keypad, GPIO, resistive touchscreen, and low-speed memory interfaces. Also, see the TPD2E2U06 and TPD4E05U06 for 2- and 4-channel ESD protection solutions, respectively.
