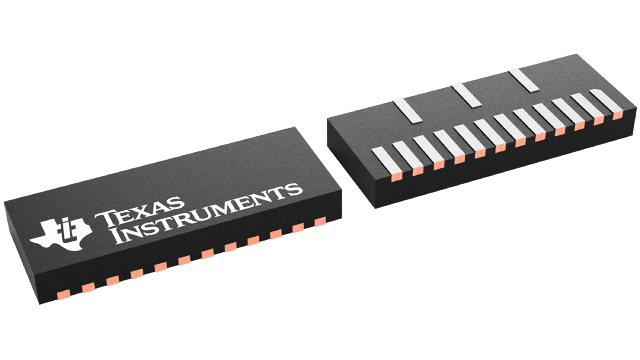

TPD8S009DSMR Texas Instruments - Yeehing Electronics
8 channel 0.8-pF, 5.5-V, ±8-kV ESD protection diode for HDMI & Displayport
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.192 |
100 — 249 | 0.984 |
250 — 999 | 0.707 |
1,000 + | 0.24 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | TVS Diodes / ESD Suppressors |
RoHS | Y |
Series | TPD8S009 |
Product Type | ESD Suppressors |
Vesd - Voltage ESD Contact | 8 kV |
Vesd - Voltage ESD Air Gap | 9 kV |
Polarity | Unidirectional |
Number of Channels | 8 Channel |
Termination Style | SMD/SMT |
Breakdown Voltage | 9 V |
Working Voltage | 5.5 V |
Clamping Voltage | 20 V |
Cd - Diode Capacitance | 0.8 pF |
Package / Case | WSON-15 |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Brand | Texas Instruments |
Operating Supply Voltage | - 0.3 V to + 6 V |
Factory Pack Quantity | 3000 |
Subcategory | TVS Diodes / ESD Suppression Diodes |
Unit Weight | 0.000981 oz |
For more information, please refer to datasheet
Documents
TPD8S009DSMR Datasheet |
More Information
The TPD8S009 device is an eight-channel TVS diode array for ESD protection. The TPD8S009 is rated to dissipate contact ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4), with ±8-kV contact discharge ESD protection. The low capacitance (0.8 pF) of this device, coupled with the excellent matching between differential signal pairs enables this device to provide transient voltage suppression circuit protection for high-speed idfferential data rates (3-dB bandwidth >
