Texas Instruments

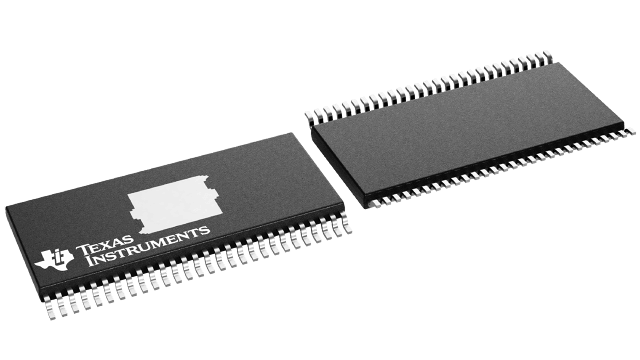

TPIC2010RDFDRG4
TPIC2010RDFDRG4
Regular price
$0.55 USD
Regular price
Sale price
$0.55 USD
Unit price
per
Couldn't load pickup availability
TPIC2010RDFDRG4 Texas Instruments - Yeehing Electronics
Serial interface controlled 9-ch motor driver with 2-ch DC/DC converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.153 |
| 100 — 249 | 1.778 |
| 250 — 999 | 1.277 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Type | Motor Driver |
| Operating Supply Voltage | 5 V |
| Output Current | 700 mA |
| Operating Supply Current | 1 mA |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 75 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-56 |
| Packaging | Reel |
| Features | 2 DCDC Converters |
| Number of Outputs | 9 Output |
| Operating Frequency | 33.8688 MHz |
| Operating Temperature Range | - 20 C to + 75 C |
| Series | TPIC2010 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 1.344 W |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.008356 oz |
For more information, please refer to datasheet
Documents
| TPIC2010RDFDRG4 Datasheet |
More Information
TPIC2010 is a very-low noise type motor driver IC suitable for slim or ultra-slim ODD. The 9-channel driver IC controlled by serial I/F is optimal for driving a spindle motor, a sled motor (stepping motor applicable), a load motor, and focus / tracking / tilt actuators and stepping motor for collimator lens. This driver IC includes 2-channel synchronous DC-DC converters.
