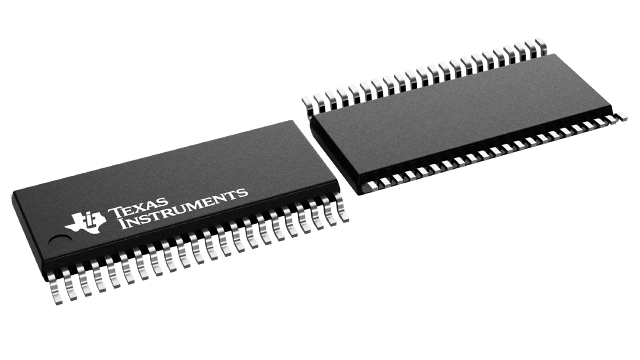

TPIC2030DBTRG4 Texas Instruments - Yeehing Electronics

Serial interface controlled 7-ch motor driver with 1-ch step-down regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.595
100 — 249	1.317
250 — 999	0.946
1,000 +	1.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-20
Maximum Operating Temperature	75
Factory Pack Quantity	2,000
Package | Pins	TSSOP (DBT) | 44

For more information, please refer to datasheet

Documents

TPIC2030DBTRG4 Datasheet

More Information

TPIC2030 is very-low noise type motor driver IC suitable for slim or ultra-slim DVD reader/writer. The integrated current sense resistance for the spindle motor reduces cost and board area in designs. The TPIC2030 is an integrated solution for driving the spindle motor, sled motor, load motor, and Focus / Tracking / Tilt actuators in an optical disk drive. It also integrates a synchronous DC-DC converter to supply 1.0 or 3.3 V. The discontinuous mode regulation feature on the DC-DC converter improves efficiency at low power consumption.
