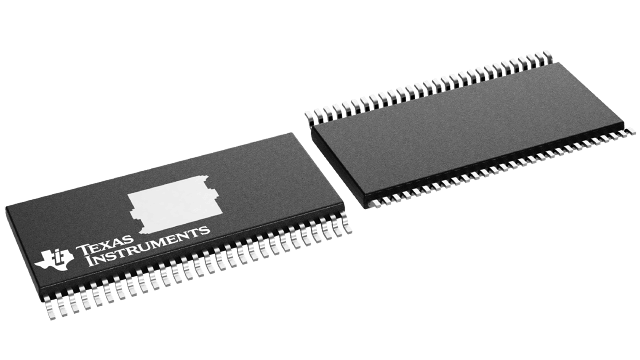

TPIC2060ADFDRG4 Texas Instruments - Yeehing Electronics

Serial interface controlled 9-ch motor driver for optical disk drive

Pricing (USD)

Quantity	Unit Price
1 — 99	2.82
100 — 249	2.329
250 — 999	1.673
1,000 +	0.72

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Minimum Operating Temperature	- 20 C
Maximum Operating Temperature	+ 75 C
Packaging	Reel
Features	1 LDO Predriver
Operating Temperature Range	- 20 C to + 75 C
Series	TPIC2060A
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.009383 oz

For more information, please refer to datasheet

Documents

TPIC2060ADFDRG4 Datasheet

More Information

The TPIC2060A is a low-noise motor driver IC suitable for 12-V ODD. The 9-channel driver IC controlled by a serial interface is optimized for driving a spindle motor, a sled motor (stepping motor applicable), a load motor, focus / tracking / tilt actuators, and stepping motor for collimator lens.
