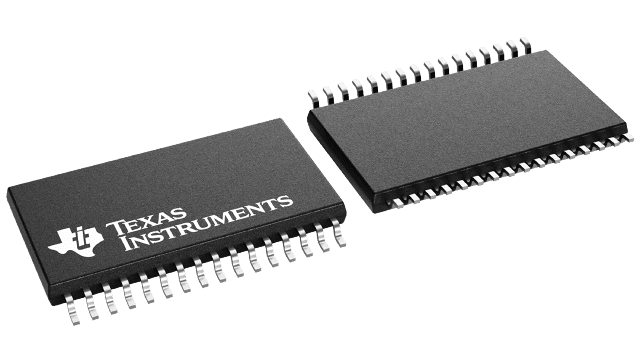

TPIC44H01DA Texas Instruments - Yeehing Electronics
1.2-mA/1.2-mA 4-channel gate driver with fault-Mode Selection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.798 |
100 — 249 | 3.096 |
250 — 999 | 2.433 |
1,000 + | 1.65 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Gate Drivers |
RoHS | T |
Product | Half-Bridge Drivers |
Type | Non-Inverting |
Mounting Style | SMD/SMT |
Package / Case | TSSOP-32 |
Number of Drivers | 4 Driver |
Output Current | 3.2 mA |
Rise Time | 12 ns |
Fall Time | 12 ns |
Supply Voltage - Min | 4.5 V |
Supply Voltage - Max | 5.5 V |
Operating Supply Current | 5 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | TPIC44H01 |
Packaging | Reel |
Features | Diagnostics, Fault Protection, Pre-FET Driver |
Operating Temperature Range | - 40 C to + 125 C |
Technology | Si |
Brand | Texas Instruments |
Operating Supply Voltage | 5 V |
Product Type | Gate Drivers |
Factory Pack Quantity | 46 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.006071 oz |
For more information, please refer to datasheet
Documents
TPIC44H01DA Datasheet |
More Information
The TPIC44H01 is a four channel high-side pre-FET driver which provides serial or parallel input interface to control four external NMOS power FETs. It is designed for use in low frequency switching applications for resistive or inductive loads, including solenoids and incandescent bulbs.
