Texas Instruments
TPIC44H01DAG4
TPIC44H01DAG4
Regular price
$1.38 USD
Regular price
Sale price
$1.38 USD
Unit price
per
Couldn't load pickup availability

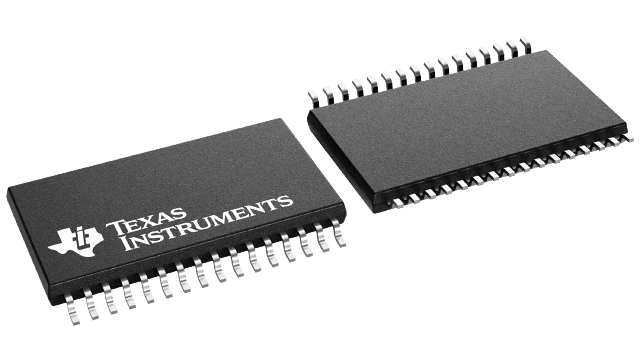

TPIC44H01DAG4 Texas Instruments - Yeehing Electronics
1.2-mA/1.2-mA 4-channel gate driver with fault-Mode Selection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.996 |
| 100 — 249 | 3.501 |
| 250 — 999 | 2.455 |
| 1,000 + | 1.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Package / Case | TSSOP-32 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPIC44H01 |
| Packaging | Reel |
| Features | Diagnostics, Fault Protection, Pre-FET Driver |
| Operating Temperature Range | - 40 C to + 125 C |
| Technology | Si |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 46 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.006113 oz |
For more information, please refer to datasheet
Documents
| TPIC44H01DAG4 Datasheet |
More Information
The TPIC44H01 is a four channel high-side pre-FET driver which provides serial or parallel input interface to control four external NMOS power FETs. It is designed for use in low frequency switching applications for resistive or inductive loads, including solenoids and incandescent bulbs.
