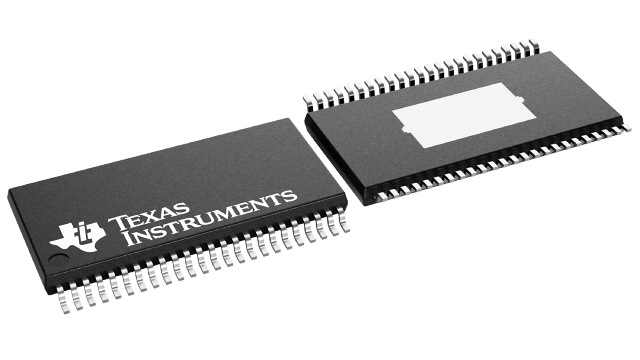

TPIC71004TDCARQ1 Texas Instruments - Yeehing Electronics
Automotive Catalog Four-Channel Squib Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.21 |
| 100 — 249 | 3.432 |
| 250 — 999 | 2.698 |
| 1,000 + | 1.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-48 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 105 C |
| Series | TPIC71004-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.007422 oz |
For more information, please refer to datasheet
Documents
| TPIC71004TDCARQ1 Datasheet |
More Information
The TPIC71004-Q1 is a quad channel squib driver for airbags deployment in automotive applications. Each channel consists of a high side and a low side switch with independent control logic for protection against inadvertent deployment. Both the high and the low side switches have internal current limits, over-temperature protection.
